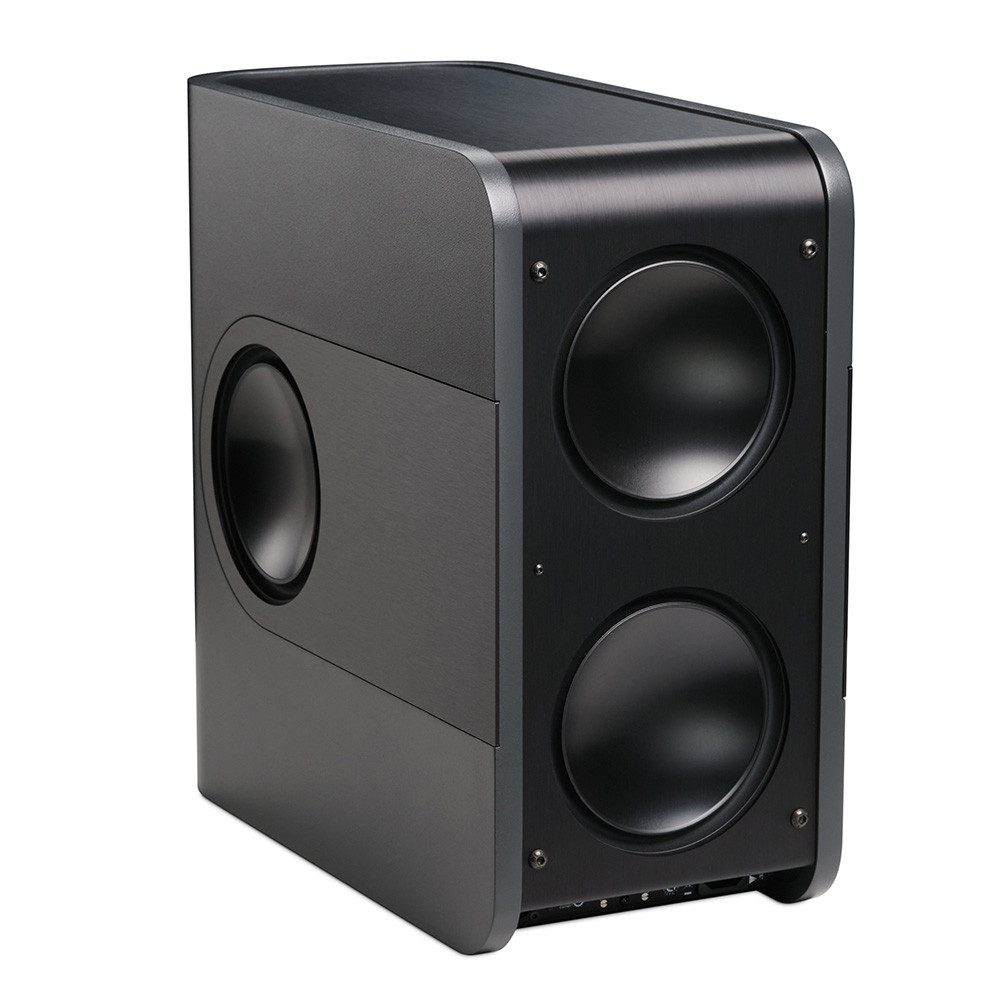

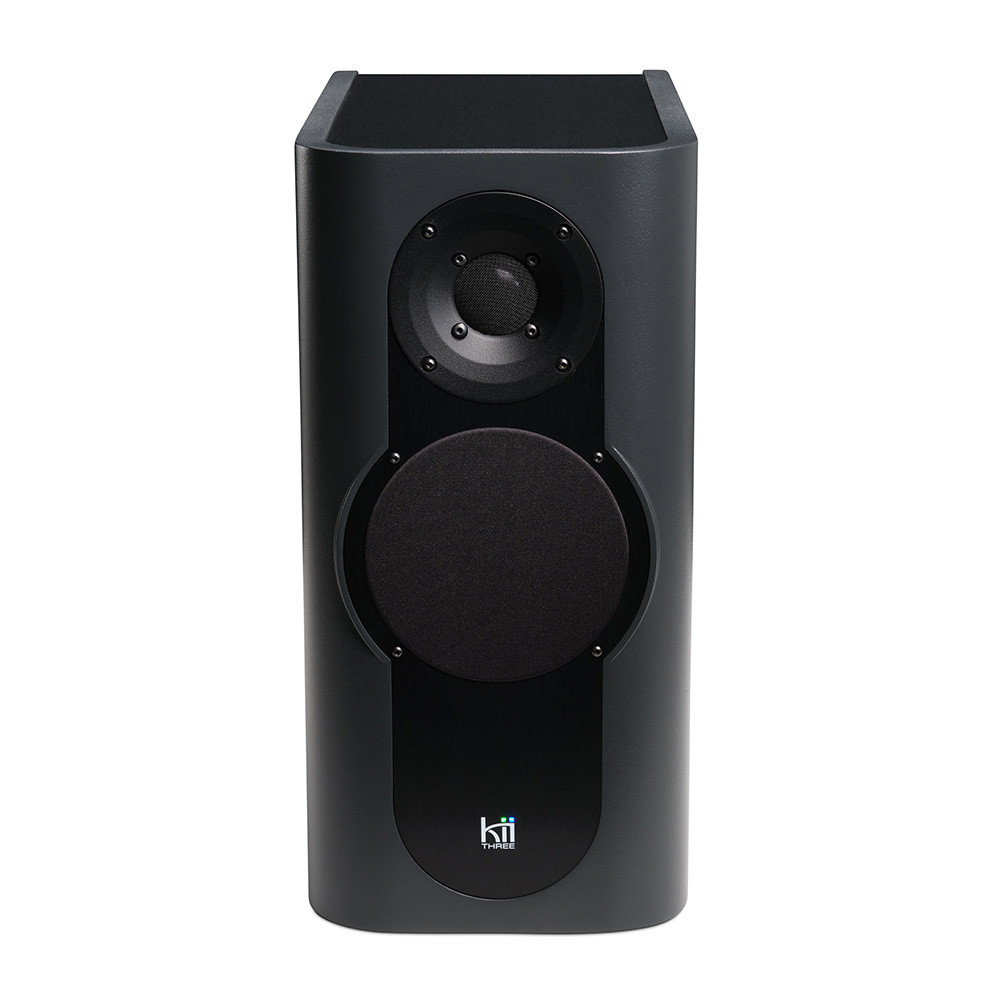

KII AUDIO THREE
Premium 3-way active speaker unit
THE SECRET OF BIG SPEAKERS
The THREE is the first compact speaker that surpasses the clarity of a full-size audio system in a large room, while its small size means it can also comfortably fit in much smaller spaces. In fact, smaller rooms benefit the most from the controlled dispersion of the THREE. The Kii THREE is truly a product without compromise, sounding better and fitting more seamlessly into smaller spaces than other compact speakers.
Basic acoustics tell us that traditional box speakers direct sound towards listeners mainly from the midrange upwards, while bass frequencies radiate all around. The frequency at which this transition occurs depends on the size of the front of the box (the "baffle"). The smaller the baffle, the higher the frequency at which bass sounds radiate all around instead of being directed towards the listener.
In short, this is why large speakers have historically provided more accurate timing and detail in the lower midrange and bass frequencies compared to small speakers: there's less interference in the room. And this is exactly what Kii has achieved with a compact speaker.
Home Experience
Representing exclusive audio engineering technology and impressive technical features, the Kii THREE system achieves perfect harmony. From the high-performance 6.5-inch mid-woofers to the meticulously crafted 1-inch waveguide tweeter, every component works in perfect harmony, enabling exceptional fidelity in music reproduction. Thanks to the incredible 1500W per speaker, the Kii THREE effortlessly fills any room with dynamic, robust sound, transforming your living space into a concert hall or intimate club where every performance feels direct and vibrant.
For Professional Studios
Elevate your studio to new heights with the Kii Three studio monitor, which has become an essential tool in today's rapidly evolving world of audio production. The wide array of audio software has democratized music creation, making a reliable and high-performance monitoring system more crucial than ever for audio professionals. Enter the Kii Three – not only meeting this demand but raising the bar.
The Kii Three's unique cardioid dispersion technology ensures outstanding quality in your studio. The Active Wave Focusing technology pioneered by Bruno Putzeys revolutionizes speaker dispersion by precisely directing sound to the ideal location. This means it excels in any room or creative space; studio acoustic treatment matters less compared to other traditional speakers. With intelligent DSP processing, this monitor system recreates the immersive feel and impact of much larger systems, setting a new standard for studio monitors.
With its transparent, revealing, and consistent sound, the Kii Three precisely communicates your work to the world, giving you an edge in the industry. Whether you're mastering or mixing complex projects, the Kii Three's unparalleled performance stands out, ensuring every project reaches its full potential. Upgrade your studio setup with the Kii Three studio monitor and experience the future of studios.
HIGH-END TECHNOLOGY IN A COMPACT DESIGN!
Every Kii THREE includes multi-channel DSP, multiple DACs, and amplifiers. Few companies could achieve such a compact design paired with truly world-class and high-performance electronics. Moreover, few active speakers were designed by people who previously preferred high-performance amplification and digital conversion from traditional, separate components.
Each Kii THREE includes 1500W of amplifier power. Bruno Putzeys designed the latest Class D technology. What sets the implementation in the Kii THREE apart is the combined voltage/current control loop, surpassing even a superior amplifier – actively improving driver distortion performance, contributing significantly to the speaker's extreme resolution.
This naturally means that the AD/DA conversion’s performance must match the amplifier’s. This task fell to Bart van der Laan, who has extensive experience in DSP and converter card design for top-tier professional audio equipment. The implementation by Kii Audio has been immensely successful: the complete passage through the THREE's signal processing card is completely free of noise and interference, a feat not even achieved by the most expensive audiophile standalone units.
In addition to the Active Wave Focusing filters, DSP is responsible for keeping the driver units within their safe operating range by finely adjusting filters rather than brutally limiting the signal, allowing the THREE to play significantly louder and cleaner than much larger traditional speakers.
On the input side, you can choose between analogue and digital inputs. All digital inputs are resampled and re-clocked using Kii's proprietary jitter-reduction algorithm, guaranteeing true "bit-for-bit" performance from any digital source.
Testimonials
"I've been using the Kii THREE monitors for a while now, and I have to say, I'm blown away. I've never had monitors this transparent; I've never had monitors where I didn't have to guess." – Misha Mansoor
"The Kii THREEs are the best I've ever heard. I trust them immensely." – Jacob Collier
"The Kii THREEs are perfect, I'm not giving them back!" – Reinhold Mack
Specifications
Compact DSP-controlled monitor speaker
4 x 6.5” woofers for the highest quality sound with Active Wave Focused woofers
1 x 5” midrange driver providing even frequency response with exceptional clarity, detail, and accuracy
1 x 1” custom waveguided tweeter for controlled and directed high-frequency output; the waveguide enhances efficiency, control, and performance
Amplification: 1,500W, fully customized Class D
Cardioid dispersion to eliminate problematic room acoustics
Active Wave Focusing crossover filter
Frequency Response:
-6dB: 20Hz, 10 -10kHz: +/- 0.5dB, 10kHz-20kHz: +/- 1dB
Built-in tone control
Selectable phase response: linear phase or minimum latency
Controlled directivity: 4.8dB (54Hz - 1kHz, slowly rising thereafter)
Size and Weight Kii THREE Speakers: 20x40x40cm, 8" x16" x16" (WxHxD), 19kg (40lbs)
Selectable correction for free-standing, near-wall, or in-corner placement (14 positions)
Automatic standby mode
Kii CONTROL
Digital preamplifier and USB interface with lossless volume control
The Kii CONTROL turns the Kii THREE into a complete playback system of the highest sound quality and usability. It offers a user interface for the speakers and functions as a digital preamplifier.
Connect a CD player/drive, server, streamer, TV, or set-top box to the controller for an impressively audiophile, comprehensive system with minimal space requirements.
All inputs are located on the rear connection panel and can be activated with touch buttons around the volume control. A dedicated input button (labelled XLR) switches to the speaker's existing hardware input, which can still be used as an analog or digital input. The Kii CONTROL connects with a single included CAT6 cable, providing power through this connection. No additional power supply is needed. Importantly, the Kii CONTROL allows lossless volume control within the Kii THREE's DSP, maintaining the clearest signal path possible. The large volume control offers mute or dim functions and manual power control (off, standby, LED brightness, DIM function, and limiter indication). A dedicated touch button provides direct access to up to six user-defined preset profiles. Menu navigation and an OLED display greatly expand settings options while providing access to more advanced system settings, including manual power control. Key functions such as volume, source, and mute can be controlled and accessed via remote and are compatible with most infrared remotes (RC5 type or Apple Remote).
The Kii CONTROL offers three additional digital inputs for the Kii THREE: coaxial SPDIF, optical TOSLINK, and USB (up to LPCM 24/384kHz or DSD64/128 via USB).
THE SECRET OF BIG SPEAKERS:
The THREE is the first compact speaker to surpass the clarity of a full-size sound system in a large room, while its small size means it feels at home in much more modest spaces. In fact, smaller rooms benefit the most from THREE-controlled bass. The Kii THREE is truly an uncompromising product that sounds better than large speakers and fits small rooms better than other small speakers.
Basic acoustics says that a classic boxed speaker directs sound to listeners only from the mid-range upwards, while bass frequencies radiate all around. The frequency of change depends on the size of the front part of the box (the "baffle"). The smaller the baffle, the higher the frequency at which bass sounds are broadcast all around, rather than directed towards the listener.
In short, that's why large speakers have so far provided much more precise timing and detail in bass and bass than small speakers: less interference in the room. And this is what Kii managed to realize with a compact speaker.
HIGH END TECHNOLOGY IN A COMPACT HOUSING!
Each Kii THREE includes multichannel DSP, multiple DACs and power amplifiers. Few companies could produce such a compact design paired with truly world-class performance electronics. But at the same time, few active speakers have been designed by people who previously preferred peak power amplification and digital conversion.
Each Kii THREE has an amplifier power of 1500W. It was designed by Bruno Putzeys with the latest development of Class D technology. Unique in the Kii THREE implementation is the combined voltage/current control loop that goes beyond a better amplifier – it actively improves the distortion performance of the drive units, which contributes significantly to the extreme resolution of the speaker.
This means, of course, that the performance of AD/DA conversion must be the same as that of amplifiers. This task fell to Bart van der Laan, who has a long history in designing DSP and converter cards for high-end professional audio equipment. Kii Audio's implementation was a huge success: the entire passage through the AD/DA circuit of the THREE signal processing board is completely noise- and interference-free, a feat not even achieved by the most expensive audiophile stand-alone units.
In addition to Active Wave Focusing filters, DSP is responsible for keeping drive units within safe operating range by finely adjusting filters instead of brutally limiting the signal, allowing the THREE to play significantly louder and clearer than much larger conventionally designed speakers.
On the input side, you can choose between analog, digital inputs. All digital inputs must be resampled and rescheduled using Kii's proprietary jitter prevention algorithm, which guarantees actual "bit-by-bit" audio performance for any digital source.
The electronics package is a milestone in itself. What it does with the unique acoustic design defies imagination. You need to hear to realize the magnitude of the revolution that Kii THREE represents.
TECHNICAL SPECIFICATIONS:
Compact DSP monitor speaker
4 x 6.5" subwoofer,
1 x 5" midrange speaker,
1 x 1" waveguide tweeter, each individually driven
Gain: 1,500 W, fully custom Class D
active wave Focusing cross filter
Frequency response: -6dB: 20Hz, 10-10kHz: +/- 0.5dB, 10kHz-20kHz: +/- 1dB
Built-in equalization
Phase response: optional, linear phase or minimum delay
Protection limiters
Controlled direction: 4.8dB (54Hz - 1kHz, then slowly rises)
Size:40x20x,40x20x 8"x16"x16" (WxDxH)
Weight: 19 kg (40 lb)
Inputs: analog, AES/EBU, KiiLink SPDIF, TOSLink, USB on Kii Control.
Selectable correction freestanding, near wall or corner (14 positions)
Auto standby mode
