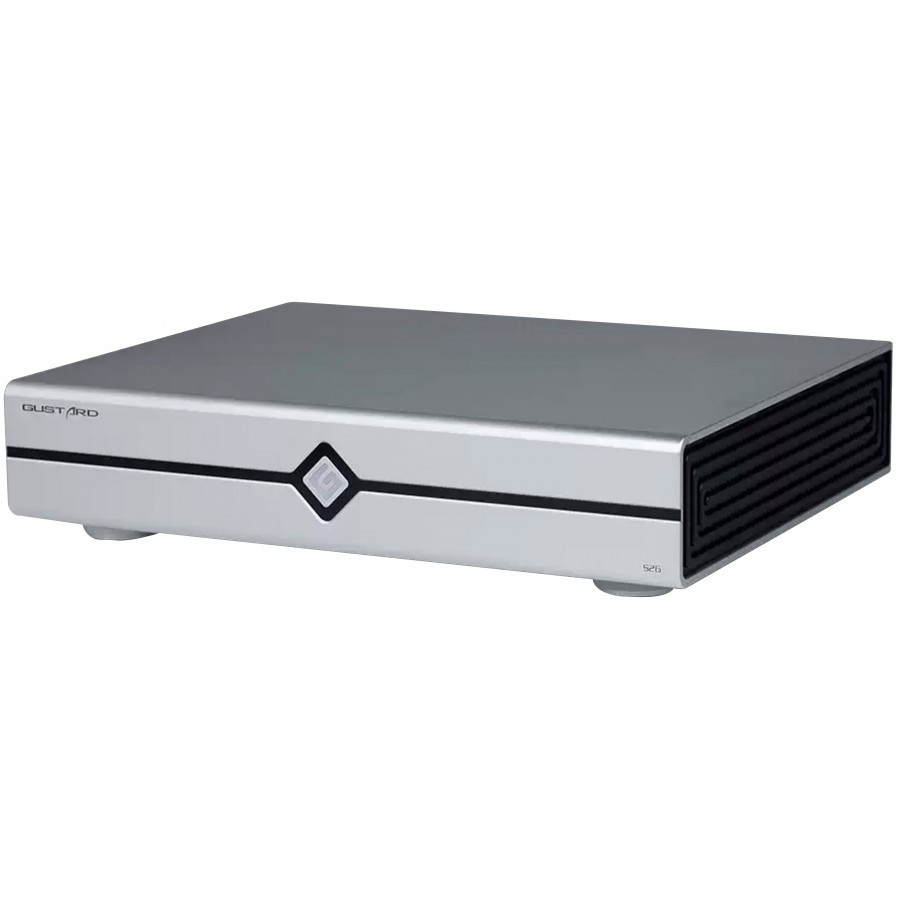

Novinky GUSTARD S26 - High-end Network Player and Digital Audio Transport UpnP Roon 32bit 768kHz DSD512 - Silver

This product will soon be available for sale. Additional information or minor modifications may be made to this product before its availability.

Gustard S26: Outstanding Network Player and Digital Audio Transport

The Gustard S26 is a network player and digital transport designed to significantly enhance the performance and quality of network audio playback. Every component, from the cooling system to the selection of hardware elements and the power supply circuit, has been carefully optimized to ensure smooth operation while minimizing noise and jitter in the output signal. With Gustard's optional 10MHz external clock generator and N18PRO audio switch, it can achieve ultimate quality.

Performance and Processor

The S26 is powered by a Ryzen 5 5600U processor, built on the Zen 3 architecture. The processor has 6 cores and 12 threads, with a base clock speed of 2.3 GHz, which can boost up to 4.2 GHz in turbo mode. This performance allows the S26 to ensure smooth operation under all conditions (e.g., handling DSD512 data files), providing unparalleled convenience in terms of user experience.

Efficient Cooling System

To avoid noise and interference, Gustard has chosen a passive heat pipe cooling solution that uses copper pipes. This guarantees efficient heat dissipation without the mechanical vibrations or noise caused by fans.

Internal Storage

The S26 is equipped with a 1TB NVMe SSD, allowing quick and high-quality access to your favorite tracks. Thanks to the speed of DDR4 RAM, storage operates smoothly. Additionally, if you need more storage, up to 4TB PCIe 3.0 SSD NVMe memory can be added (SSD sold separately).

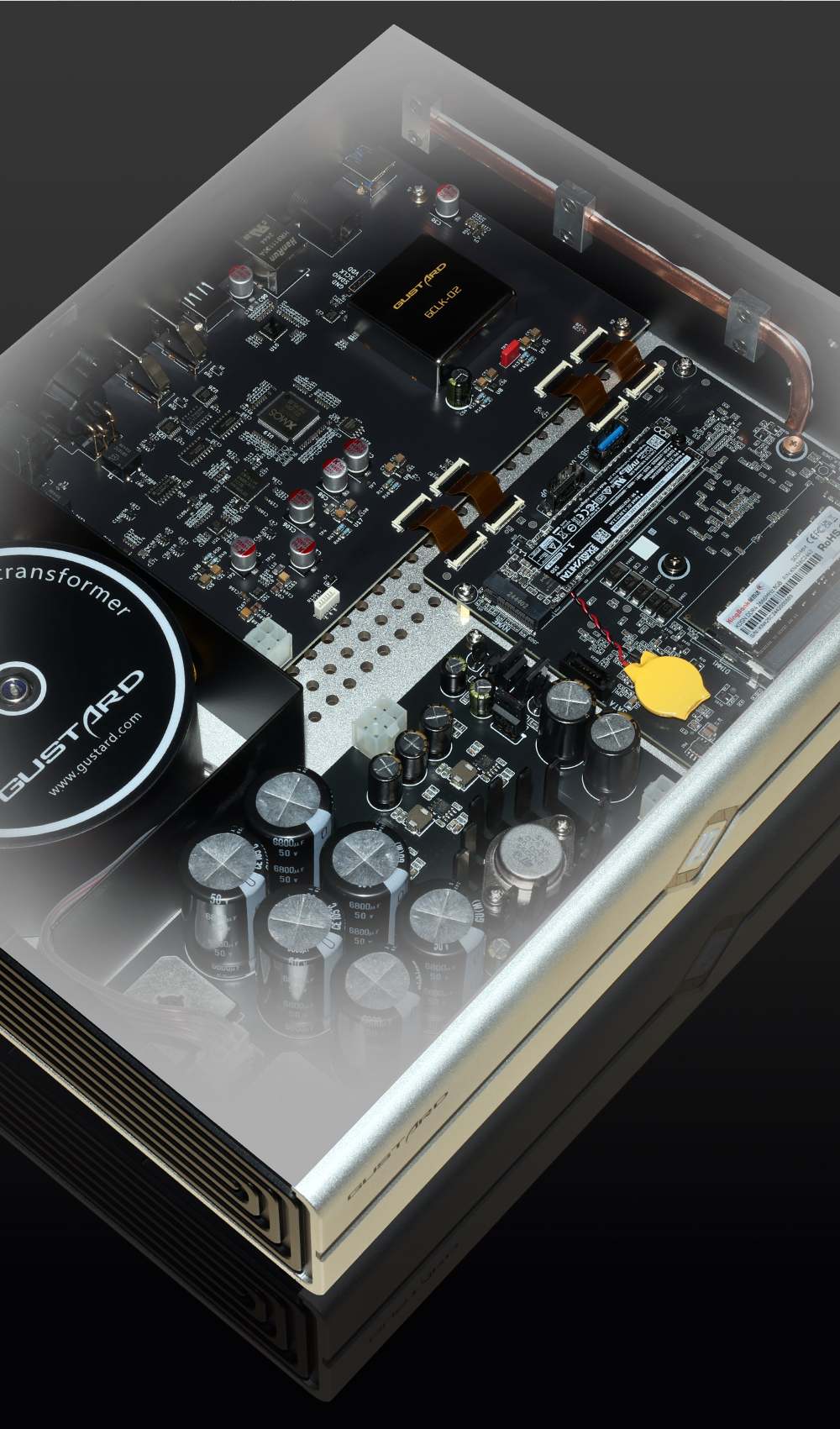

Quality Power Supply

The S26's power supply is built on a 120VA OFC copper transformer. The current passes through a double bridge rectifier, capable of generating up to 800V DC with a capacity of 25A. The 400A starting current capacity ensures the system's efficiency and reliability. The 40800µF capacitors stabilize the power supply, providing continuous and uninterrupted power to the device.

The power supply for the various modules is provided through independent circuits, each equipped with low dropout regulators, ensuring that the power supply noise does not exceed 5µV.

Precise Timing: The "Soul" of Digital Audio

To perfectly synchronize the signal, the S26 sets the output frequency from a single clock. This clock controls the PCIe, network, and USB connections, ensuring system harmony and optimal stability. Gustard's proprietary GCLK-02 clock module uses phase-locked loop technology, providing exceptional accuracy with 1Hz locking performance. Additionally, for even greater accuracy, an external 10MHz clock can be connected via the 50Ω impedance BNC input.

Extended Compatibility

The Gustard S26 supports Roon Core and UPnP servers, making it integrable into a wide range of setups. The device is also compatible with Spotify Connect, Apple Airplay, and QQ Music services.

Technical Specifications:

Gustard S26 Streamer – Technical Specifications and Detailed Description

1. General Features
   • Device Type: Network audio streamer, integrated digital signal processor for excellent signal quality achieved through precise component design, radical reduction of jitter and power supply noise.
2. Processor and Performance
   • CPU: AMD Ryzen 5 5600U (Zen 3 architecture).
     • Cores/Threads: 6 cores / 12 threads.
     • Clock Speed: Base 2.3 GHz / Turbo Boost: 4.2 GHz.
     • Tasks: Digital signal decoding, network data stream handling, real-time DSP operations.
   • Performance Guarantee: Dynamic frequency scaling of the processor ensures smooth operation even under heavy load (e.g., DSD512 decoding, multi-user streaming).
3. Unique Passive Cooling System
   • Type: Passive heat pipe cooling, with copper heat pipes.
     • Advantages:
     • Noise-free operation (no fan).
     • Elimination of mechanical vibrations and electromagnetic interference (EMI).
     • Temperature Management: Optimized heat conductivity of copper heat pipes ensures temperature stability of the processor and critical circuits.
4. Storage System
   • Primary Storage: 1TB NVMe SSD (PCIe 3.0 x4 interface).
     • Data Transfer Speed: Up to 3,500 MB/s read, 3,000 MB/s write.
   • Expandability:
     • 1× M.2 PCIe 3.0 slot (NVMe support), up to 4TB.
     • Note: For external SSD, PCIe bandwidth is shared with the network interface.
   • RAM: DDR4 memory (size not specified), for low-latency data buffering.
5. Power Supply and Noise Filtering
   • Transformer: 120VA OFC (Oxygen-Free Copper) core, double-layer insulation.
   • Rectification: Double bridge Schottky diodes (25A continuous current, 800V blocking voltage).
   • Capacitors: 40,800 µF total capacity (Nippon Chemi-Con or similar quality), low ESR value.
   • Circuits:
     • Independent subsystems (processor, storage, clock generator) with separate LDO (Low Dropout) regulators.
     • Output noise: <5 µV RMS (20Hz–20kHz band).
6. Clock Generation and Jitter Management
   • Internal Clock: Gustard GCLK-02 module.
     • Technology: Phase-locked loop (PLL) with 1Hz resolution.
     • Optional expandability using GUSTARD 10MHz external clock generator for ultimate precision.

Technical Specifications:

• Built-in storage: SSD 1TB 1x M.2 PCIe 3.0 NVMe SSD (expandable up to 4TB)
• RAM memory: 8GB DDR4
• Inputs: 1x USB-A 3.0, 1x RJ45, 1x 10MHz external clock BNC connector
• Outputs: 1x USB-A, 1x HDMI I2S, 1x HDMI I2S-G, 1x AES/EBU (XLR socket), 1x Optical (Toslink), 1x Coax
• Supported sampling rates: I2S: PCM 32bit 768kHz / Native DSD512, AES / Coaxial / Optical: PCM 24bit 192kHz / DSD DoP256
• Supported protocols and services: Roon Core, UPnP server, AirPlay, Spotify connect, QQ Music
• General data:
  • Input voltage: 115-230V
  • Weight: 5.5kg
  • Dimensions: 330 x 260 x 65mm
  • Available colors: Black
  • Package contents: 1x Gustard S26, Power cable, Remote control
